KEY FEATURES

• Hydraulic dump and drive
• Reversible mixing paddles to prevent clogging
• Vertical paddle orientation to cut through material for a homogeneous mix
• Loads below waist level and dumps high to lessen the backaches
• Fork pockets accessible from all sides
• Adjustable legs and outriggers for stability
• Patented rubber blades provide longer wear
• Variable speed control to accommodate separate mix designs
• Bolt-in abrasion resistant drum liners

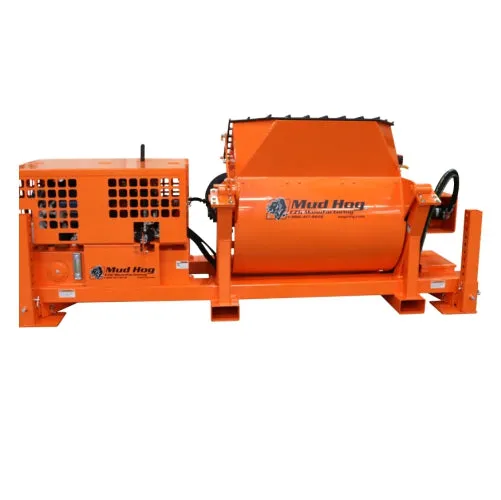

RMH20 Specifications

• 1000 lb. (454 kg) drum capacity
• Will mix up to ¾" (1.9 cm) aggregate
• Empty weight 3600 lbs. (1632 kg)
• Hydraulic dump system
• Hydraulic drive system
• 30-gallon hydraulic reservoir
• Overall dimensions (L × W × H) 122" × 44" × 56"

Options

• Power Source
  • 20 HP Electric Motor - 3PH/230V (Standard)
  • 20 HP Electric Motor - 3PH/460V
  • Gas Engine
• Solid grating available to minimize dust
• Water bar with re-settable meter for easy filling
• Bolt-in abrasion resistant drum liners
• Custom modifications available upon request
